PC Boards

SPS PCA Backplane; SFF HDD (1-based) - 832029-001

PC board backplane - For use with small form factor (SFF) drives - Supports 25 SFF drives (Part Number 832029-001)

SPS-PCA LP P1 PCIe Long Riser - 828928-001

PCA low profile (LP) P1 PCIe long riser (Part Number 828928-001)

SPS-PCA GD Long Riser Enhncd - 828927-001

PCA long riser enhanced (Part Number 828927-001)

SPS-PCA Backplane Assy: Drawer/Brick/HDD - 828614-001

Backplane assembly drawer (Part Number 828614-001)

SPS-PCA I/O Module:Carrier/2P/data cable - 828613-001

PCA-HPE SAS 2port I/O Module board expand IPASS with tray and cable assembly for D6020 disk enclosure (Part Number 828613-001)

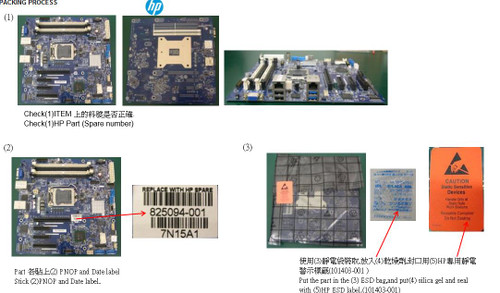

SPS-PCA M/B ML30 - 825094-001

System I/O board (motherboard) - Supports Intel Xeon select E3-1200 V5 (Skylake) G4500, G4400 (Skylake) and i3-6100, i3-6300 (Skylake), processors - Includes alcohol pad, and thermal grease syringe - Processors must be the same spare part number (Part...

SPS: Express Bridge; PCA - 6 Drives - 824019-001

Express bay bridge board - Non-Volatile Memory express (NVMe) interface PCIe controller board with three internal 68-pin connectors for controlling up to six NVMe drives - Requires one PCIe (Gen 3) x16 slot (Part Number 824019-001)

SPS-PCA DL20 PCIe LP Riser - 823798-001

2-slot riser board assembly - Has a PCIe3 x8 low-profile card socket on one side (slot 1) and PCIe3 x8 full-height, half-length card socket on the other side (slot 2) (Part Number 823798-001)

SPS-PCA 4SFF HDD BKPLN DL20 - 823795-001

Four-bay small form factor (SFF) hot-plug backplane board assembly - Mounts on the rear of the front SFF drive cage (Part Number 823795-001)

SPS-PCA 2LFF HDD BKPLN DL20 - 823794-001

Two-bay large form factor (LFF) hot-plug backplane board assembly - Mounts on the rear of the front LFF drive cage (Part Number 823794-001)

SPS-PCA M/B DL20 - 823793-001

System I/O board (motherboard) assembly - Includes the system I/O board, alcohol pad, and thermal grease (Part Number 823793-001)

SPS-Assy 2SFF Cage+SCSIe+Cable DL360 - 823791-001

Express bay SFF hard drive cage assembly (replaces the universal media bay cage assembly) - Includes the two-bay drive cage assembly, backplane board, mini-SAS cable, and backplane power cable (Part Number 823791-001)

SPS-PCA MLB BL460c Gen9 V2 - 820254-001

System I/O board (motherboard) - Supports Intel Xeon E5-2600 V4 (Broadwell) and E5-2600 V3(Haswell) processors - Includes base pan assembly, alcohol pad, and thermal grease syringe - Processors must be the same spare part number (Part Number 820254-001)

SPS-PCA TCM MOD - 820027-001

TCM PCA module (Part Number 820027-001)

SPS-PCA NIC PCIeG2x4 4p 1GbE RJ45 - 816551-001

Ethernet 1Gb 4-port 366T adapter - Has four 10/100/1000BASE-T RJ45 ports - Requires one x4 (Gen2) PCI Express slot (compatible with x4, x8 and x16 PCI Express slots) - Requires CAT5 or better twisted-pair (Part Number 816551-001)

SPS-Board: IEX4 - 815367-001

Board IEX4 (Part Number 815367-001)

SPS-Board: 18/24 CMS1 - 815365-001

Board 18/24 CMS1 (Part Number 815365-001)

SPS-Board: 18/24 CLX - 815364-001

Board 18/24 CLX (Part Number 815364-001)

SPS-Board Assmbly:18/24 CPC3 - 815359-001

Cluster plug board assembly 18/24 (Part Number 815359-001)

SPS-Flex Bay (2SFF ODD USB/VGA) - 814059-001

Flex bay assembly (cage) - Includes the flex bay cage with integrated optical drive bay (with blank cover), two small form factor (SFF) cage assembly with SAS backplane board, and front cable assembly that includes a VGA port and two USB ports (Part...
