PC Boards

SPS-PCA DL160 Gen9 4LFF SAS BP - 779096-001

4-bay hot-plug large form factor (LFF) backplane board - For either SAS or SATA hard drives - Up to 6Gbs SATA and 12Gbs SAS transfer speed (Part Number 779096-001)

SPS-PCA M/B DL160/180Gen9 - 779094-001

System I/O board (motherboard) assembly - For Intel Xeon E5-2600 series v3 processors only - Includes the system I/O board, alcohol pad, thermal grease, and installation instruction card (Part Number 779094-001)

SPS-PCA DL180 Gen9 3PCIE X8 riser - 779085-001

3-slot PCI riser board - Has three PCIe3 x8 full-height, full-length slots - Can be installed in either primary or secondary PCIe riser slot (A second processor is required to support installation in the secondary PCIe riser slot) (Part Number 779085-001)

SPS-PCA DL180 Gen9 2PCIE X16/X8 riser - 779084-001

2-slot PCI riser board - Has one PCIe3 x16 and one PCIe3 x8 full-height, full-length slots - Can be installed in either primary or secondary PCIe riser slot (A second processor is required to support installation in the secondary PCIe riser slot) (Part...

SPS-PCA DL180 Gen9 8LFF SAS BP - 779083-001

8-bay hot-plug large form factor (LFF) backplane board - For either SAS or SATA hard drives - Mounts on the two bottom rows of the front hard drive cage (Part Number 779083-001)

SPS-PCA DL360/380 12-LFF SAS Backplane - 777284-001

SAS/SATA backplane board - For the front 12-bay large form factor (LFF) hard drive cage, up to 12Gbs transfer speed (Part Number 777284-001)

SPS-PCA dl380 3-S 2 x16 x8 PCI-E riser2 - 777283-001

PCI-E riser 2 assembly - 3 slot 2-PCIe3 x16 x8 (Part Number 777283-001)

SPS-PCA dl380 2-S x16 x8 PCI-E riser1 - 777282-001

PCI riser cage assembly - Includes the metal cage assembly with the 2-slot primary optional PCI riser board - Includes one half-length PCIe3 x16 slot and one half-length PCIe3 x8 slot (Part Number 777282-001)

SPS-PCA dl380 2-SFF rear Backplane - 777280-001

SAS/SATA backplane board - Mounts on the rear of the 2-bay small form factor (SFF) hard drive cage - Performance is up to 12Gbs transfer speed (Part Number 777280-001)

SPS-PCA dl380 8-SFF Backplane 12Gbs - 777279-001

SAS/SATA backplane board - Mounts on the rear of the 8-bay small form factor (SFF) hard drive cage - Performance is up to 12 Gb/s transfer speed (Part Number 777279-001)

SPS-ACCELERATOR I/O 5.2TB PCIe LE - 775680-001

5.2TB Workload Accelerator board, Mixed Use (MU) - PCIe board with NAND flash technology and integrated controller - Requires one x8 PCIe (Gen2) slot, full-height, half-length form factor, Light Endurance (LE) - Supports select Gen9, Gen8, Gen7 (Part...

SPS-ACCELERATOR I/O 2.6TB PCIe LE - 775679-001

2.6TB Workload Accelerator board, Mixed Use (MU) - PCIe board with NAND flash technology and integrated controller - Requires one x8 PCIe (Gen2) slot, half-height, half-length form factor, Light Endurance (LE) - Supports select Gen9, Gen8, Gen7 (Part...

SPS-ACCELERATOR I/O 1.3TB PCIe LE - 775678-001

1.3TB Workload Accelerator board, Mixed Use (MU) - PCIe board with NAND flash technology and integrated controller - Requires one x8 PCIe (Gen2) slot, half-height, half-length form factor, Light Endurance (LE) - Supports select Gen9, Gen8, Gen7 (Part...

SPS-ACCELERATOR I/O 1.0TB PCIe LE - 775677-001

1.0TB Workload Accelerator board, Mixed Use (MU) - PCIe board with NAND flash technology and integrated controller - Requires one x8 PCIe (Gen2) slot, half-height, half-length form factor, light endurance (LE) - Supports select Gen9, Gen8, Gen7 (Part...

SPS-PCI Riser SEC S3 dl360 Gen9 - 775419-001

Secondary PCIe3 riser board ONLY - Provides a full-height x16 PCIe3 in slot 3 of the server - Plugs in the secondary riser slot on the system I/O board - This optional board requires that a second processor be installed (Part Number 775419-001)

SPS-PCA dl360 2SFF+SAS SATA FB HDD Bkpl - 775401-001

SAS/SATA backplane board - For the front 2-bay small form factor (SFF) hard drive cage - Up to 12Gbs transfer speed - Optional board for configurations requiring more than eight hard drives and no optical drive - Mounts on the rear of the drive cage...

SPS-M/B HASWELL-R v2 - 773064-001

System I/O board (motherboard) - Supports Intel (Haswell) processors - Includes base pan assembly, alcohol pad, and thermal grease syringe - Processors must be the same spare part number V2 (Part Number 773064-001)

SPS-M/B ENHANCED DL320e v3 - 769743-001

DL320e Gen8 v2 enhanced motherboard (Part Number 769743-001)

SPS-PCA m350 NGFF MEZZ - 764971-001

Optional SATA mezzanine board for M.2 type 2230 solid state drive devices - Will accommodate two drives on each side of the board (four drives total) - Mounts on the ProLiant m350 server cartridge (Part Number 764971-001)

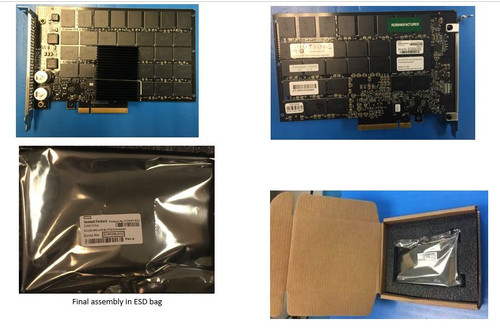

SPS-ACELERATOR I/O 6.4TB PCIe MLC - 764128-001

6.4TB Workload Accelerator board, Read Intensive (RI) - PCIe board with NAND flash technology and integrated controller - Requires one x8 PCIe (Gen2) slot, full-height, half-length form factor, value endurance (VE), 0.5 drive writes/day, 6.3PB written...
