PC Boards

SPS-PCA ETHERNET/MNG BCKPLN-NON SAS - 735182-001

Ethernet non SAS management backplane (Part Number 735182-001)

SPS-PCA ETHERNET/MNGMT BCKPLN - 735181-001

Ethernet management backplane board (Part Number 735181-001)

SPS-PCA 12v PASS THRU ASSY - 735180-001

12v pass thru assembly (Part Number 735180-001)

SPS-PCA ETHERNET AGGREGATOR BRD - 735179-001

Ethernet aggregator board (Part Number 735179-001)

SPS-PCA GPU RISER SL8500 - 735175-001

Graphics Processing Unit (GPU) riser board - For use with SL8500 (Part Number 735175-001)

SPS-PCA MEZZ I/O R/A W/O SAS - 735169-001

Input-Output (I/O) mezzanine board - Without SAS (Part Number 735169-001)

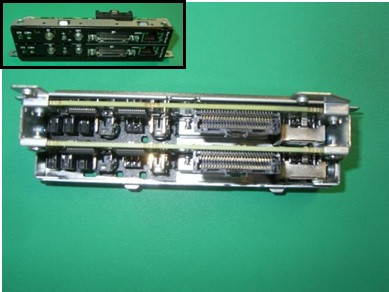

SPS-COMPUTE ASSY FPIO SL8500 - 735167-001

Computer Front Panel IO (FPIO) board assembly - For use with SE2x8530a Gen8 (Part Number 735167-001)

SPS-COMPUTE ASSY PERSBRD SL8500 - 735166-001

Computer personality board assembly - For use with SE2x8530a Gen8 (Part Number 735166-001)

SPS-Assy PCA Slayton SD Mezz - 733994-001

Optional SATA mezzanine board for M.2 type 2242 solid state drive devices - Will accommodate two drives on each side of the board (four drives total) - Mounts on the ProLiant m800 server cartridge (Part Number 733994-001)

SPS-PCA PE3 4U x24 LPLOM - 733992-001

Low-Profile (LP) LAN on Motherboard (LOM) board - x24, 4U form factor, PE3 (Part Number 733992-001)

SPS-PCA PE3 GPU MEZZ LFT SL270 Gen8 IVB - 733991-001

Mezzanine board - Left node, Graphics Processing Unit (GPU) - For use with SL270 Gen8 (Part Number 733991-001)

SPS-PCA PE3 GPU MEZZ RGT SL270 Gen8 IVB - 733990-001

Mezzanine board - Right node, Graphics Processing Unit (GPU) - For use with SL270 Gen8 (Part Number 733990-001)

SPS-PCA EXT RGT Personality SL230 G8 IVB - 733177-001

Right personality board - Ivy Bridge (IVB), extension - For use with SL230 G8 (Part Number 733177-001)

SPS-PCA EXT LFTSL230s G8 IVB - 733173-001

Left extension board - Ivy Bridge (IVB) - For use with SL230s G8 (Part Number 733173-001)

SPS-PCA HASWELL MB - 732715-001

System I/O board (motherboard) - Supports Intel Xeon E5-2600 V3 (Haswell) processors - Includes alcohol pad, and thermal grease syringe - Processors must be the same spare part number (Part Number 732715-001)

SPS-BD SYS IO DL360e Gen8 IVB - 732151-001

System board assembly (motherboard) for Intel Xeon E5-2400 (Sandy Bridge) and E5-2400 v2 (Ivy Bridge) processors - Includes the system board with subpan, system board tray, cables, processor baffles, and power supply baffle (Part Number 732151-001)

SPS-BD SYS IO DL360p Gen8 IVB - 732150-001

System I/O board (motherboard) - Supports Intel Xeon E5-2600 (Sandy Bridge) and E5-2600 V2 (Ivy Bridge) processors with SCREW DOWN-TYPE heatsink - Includes sub pan, alcohol pad, and thermal grease syringe - Processors must be the same spare part number...

SPS-BD SYS IO DL380e Gen8 IVB - 732145-001

System board assembly (motherboard) for Intel Xeon E5-2400 Sandy Bridge and E5-2400 v2 Ivy Bridge processors - Includes the system board with subpan, system board tray, and power supply air baffle (Part Number 732145-001)

SPS-BD ROBOTIC CONTROL UNIT V3 HW REV2 - 731144-002

Robotic control unit board v3 HW rev2 (Part Number 731144-002)

SPS-BD Mgmt Contrl Board V2.0 - 731143-001

Management controller board v2.0 (Part Number 731143-001)
