PC Boards

SPS-NC364m;BLc 4-PORT GIGABIT; MEZZ ADPT - 448066-001

NC364m 4-port Gigabit ethernet mezzanine adapter (International) (Part Number 448066-001)

SPS-BD; SYSTEM I/O; S/P - 447463-001

System I/O board (Part Number 447463-001)

SPS-BD;4-INT;SAS RAID;HBA;HALF HEIGHT - 447431-001

Serial Attached SCSI (SAS) Host Bus Adapter (HBA) - Has four internal ports with RAID - Half height (HH) (Part Number 447431-001)

SPS-BD;4-INT;SAS RAID;HBA;FULL HEIGHT - 447430-001

SC40GE Host Bus Adapter (HBA) - Serial ATA (SATA) / Serial Attached SCSI (SAS) PCI Express - Half height (Part Number 447430-001)

SPS-BD;CNTRL;EXT;SAS;E500 - 443999-001

Smart Array E500 controller board - PCIe x8 SAS RAID controller - Supports RAID 5, 1, 1+0, and 0 - Has two external x4 mini-SAS ports, memory connector - For up to 3Gb/sec SAS and 1.5Gb/sec SATA transfer rate - Does not include memory or batteries (Part...

SPS-BD; MIDPLANE - 441829-001

Midplane board assembly (Part Number 441829-001)

SPS-BD; MEDIA W/ CA - 441828-001

DVD media board - With cable (Part Number 441828-001)

SPS-PCA HARDWARE COMPRESSION; PCI-e - 441667-001

Hardware compression PCI-E card (Part Number 441667-001)

SPS-BD;CT M/B DL140G3 - 440633-001

System board - Supports FSB 1066/1333 MHz bus, dual-core Intel 771-pin processor Dempsey/Woodcrest CPU and Intel quad-core Clovertown CPU (Part Number 440633-001)

SPS-BD LED MSL8096 - 440333-001

LED board (Part Number 440333-001)

SPS-BD OCP-DISPLAY MSL8096 - 440332-001

OCP display board (Part Number 440332-001)

SPS-BD CONTROLLER MSL8096 - 440327-001

Controller board (Part Number 440327-001)

SPS-BD;U320;EXP;PLXBB;HBA - 439946-001

SC11Xe Ultra320 SCSI host bus adapter (HBA) board, PCIe - Has one external 68-pin VHDCI connector, one internal 68-pin SCSI-3 connector, 320MB/sec transfer rate (Part Number 439946-001)

SPS-BD;2P; 8DDR5300; CLVRFALLS - 439399-001

System I/O board (motherboard) - For use in servers using Intel Xeon 50xx, 51xx, 52xx, 54xx series processors, and PATA optical drives ONLY - Includes sub pan tray and screws (Part Number 439399-001)

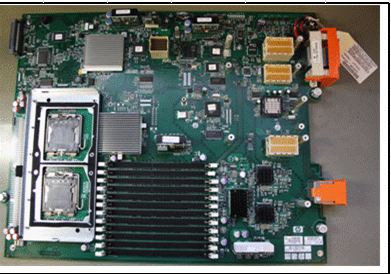

SPS-BD; SYSTEM I/O; CT - 438453-001

I/O System board - Supports quad-core processors (Part Number 438453-001)

SPS-BD;CLVRTN;BL460c MLB - 438249-001

System I/O board (motherboard) - Supports quad-core Intel Xeon select 5000 (Harpertown), (Nehalem) processors - Includes base pan assembly, alcohol pad, and thermal grease syringe - Processors must be the same spare part number (Part Number 438249-001)

SPS-BD;DL360 G4 PCI-X RISER BRD FULL - 436912-001

Optional PCI-X riser board (to add PCI-X capabilities) - Replaces the full length, full height PCIe riser board in the riser cage assembly (Part Number 436912-001)

SPS-BD; M/B COMPATIBLE;ML150G3; DWC - 436718-001

System board - Used on Quad-Core and newer Dual-Core processor systems, but is backward compatable with older Dual-core systems that use earlier version system boards (Part Number 436718-001)

SPS-BD; SYS I/O W/PROC CAGE;CLVTN - 436526-001

System I/O board (motherboard) - Supports Intel Xeon 50xx, 51xx, 52xx, 53xx and 54xx Dual-Core and Quad-Core processors - Includes heatsink cage and system battery (Part Number 436526-001)

SPS-BD;NIC;X4 PCI-E;4 PORT;1000 BASE-T - 436431-001

NC364T quad port Gigabit Ethernet adapter board - Has four external RJ45 10/100/1000Mb ports - Requires one low profile (or full height) x4 PCIe slot (Part Number 436431-001)
