PC Boards

SPS-BD;I/O;W/TRAY - 432162-001

System I/O board - With tray (Part Number 432162-001)

SPS-BD-PCI-X RISER BRD HALF DL320G5 - 431715-001

PCI-X riser board - Half height - Recomended for DL320 G5 servers (Part Number 431715-001)

SPS-BD; DL365G1 I/O - 431355-001

System I/O board assembly - Includes processor cages - Mounts in the bottom of the chassis (Part Number 431355-001)

SPS-BD;MAIN LOGIC & BACKPLANE - 430798-001

Backplane (main logic board) and midplane boards - Backplane includes sub-chassis (Part Number 430798-001)

SPS-BD; SYS I/O W/BACKPLATE - 430447-001

System I/O board (motherboard) with subpan - Includes the two processor sockets, two PCIe connectors, system battery, and rear panel video, mouse, keyboard, USB, and iLO 2 connectors (Part Number 430447-001)

SPS-BD;BACKPLANE - 430149-001

SAS backplane board - 25-bay, hard disk drive (HDD) controller - Includes processor service carton label, blank thermal print (Part Number 430149-001)

SPS-BD;MIDPLANE - 430148-001

Midplane board (Part Number 430148-001)

SPS-BD; PASS THROUGH - 419621-001

Pass-through board - Vertical board that interconnects the multimedia board to the system I/O board - Mounts on the right side of the server (Part Number 419621-001)

SPS-BD; LED/MEDIA - 419619-001

Media board - Includes the System Insight Disply (SID) assembly and connectors for the floppy drive, optical drive, video cable, USB cable, and power switch cable (Part Number 419619-001)

SPS-BD; SYS I/O - 419616-001

System I/O board assembly - Includes two PCI-X slots, four x4 PCIe slots, three x8 PCIe slots, and rear panel NIC, iLO2, USB, serial, video, mouse and keyboard connectors (Part Number 419616-001)

SPS-BD; SYSTEM I/O - 419527-001

System I/O board (motherboard) - Includes thermal grease and alcohol pad (Part Number 419527-001)

SPS-BD;SERIALX-SLT;w/BRKTS;UPS - 419180-001

X-slot serial board - Includes brackets (Part Number 419180-001)

SPS-BD; System MB; ML110G4 - 419028-001

System board (Part Number 419028-001)

SPS-BD; LED - 418271-001

Front panel and hard drive cage assembly with front panel LED board (Part Number 418271-001)

SPS-BD; BCKPLN; SAS - 418270-001

SAS hard drive backplane (Part Number 418270-001)

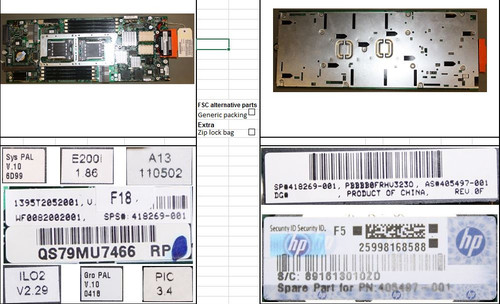

SPS-BD; SYSTEM I/O - 418269-001

System I/O board (motherboard) - Supports select AMD processors - Includes alcohol pad, and thermal grease syringe - Processors must be the same spare part number (Part Number 418269-001)

SPS-BD;REDUNDANT MGMT;IB - 418057-001

Voltaire IB redundant management board (Part Number 418057-001)

SPS-SPS-BD;CONTROLLER - 417592-001

Controller module - Includes chassis and controller PC board - Does not include cache PC board or batteries (Part Number 417592-001)

SPS-SPS-BD;BACKPLANE;SATA - 417591-001

Serial ATA (SATA) backplane PC board - Includes one backplane board (Part Number 417591-001)

SPS-BD;LED;UID - 417590-001

Unit identification (UID) LED PC board (Part Number 417590-001)
