PC Boards

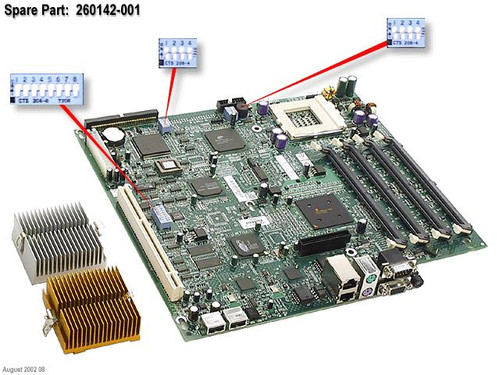

SPS-BD;SYSTEM I/O;DST - 260142-001

Motherboard (system I/O board) - Does not include processor (Part Number 260142-001)

SPS-BD;FC-PCI 2GB;HBA;TRU64 - 258984-001

2GB single channel PCI fibre channel Host Bus Adapter (HBA) - 64-bit, 133MHz - For use in servers based on either PCI or the latest PCI-X expansion bus (Part Number 258984-001)

SPS-BD;FC PCI;2GB;HST BUS ADT - 257898-001

Board, FC, PCI, 2GB, Host Bus Adapter (Part Number 257898-001)

SPS-BD MGMT CARD; PWR SPLY - 253238-001

Power supply management card (power enclosure) (Part Number 253238-001)

SPS-BD MGMT CARD; INSERT - 253237-001

Data insert management card (server enclosure) (Part Number 253237-001)

SPS-BD BKPLNE INSRT PWR A-RAIL - 253234-001

Rail power insert backplane board (Part Number 253234-001)

SPS-BD BKPLNE INSERT SIGNAL - 253233-001

Signal insert backplane board (Part Number 253233-001)

SPS-BD;CRASH CART - 253089-001

Diagnostics adapter board (Part Number 253089-001)

SPS-BD;SYSTEM I/O;W/BKT - 253087-001

System I/O board with PIII 700MHz processor (Part Number 253087-001)

SPS-BD;ENCLOSURE STATUS - 253083-001

Enclosure status board (Part Number 253083-001)

SPS-BD;CENTER WALL;W/BKT - 253081-001

Center wall board with bracket - Includes power backplane board (Part Number 253081-001)

SPS-BD;FAN BKPLN;W/CABLE - 253080-001

Fan backplane board with cable (Part Number 253080-001)

SPS-BD;ENCLOSURE MANAGER - 253075-001

BL e-Class integrated administrator board (Part Number 253075-001)

SPS-BD;BCKPLN W/CA;REM MEDIA - 252357-001

Optical/floppy drive backplane board assembly - Includes the 80-pin cable to the system I/O board - Mounts on the rear of the optical drive and floppy drive bays (Part Number 252357-001)

SPS-BD;PCI BACKPLANE - 252356-001

PCI riser cage assembly - Includes the "I" shaped riser cage, the two expansion board connectors, and system I/O board connector (Part Number 252356-001)

SPS-BD;SYSTEM I/O - 252355-001

System I/O board assembly (motherboard) - Board includes two processor sockets with heat sinks - Does not include the processors (Part Number 252355-001)

SPS-BD;FEATURE - 249933-001

SCSI Feature Board (Part Number 249933-001)

SPS-BD;SYSTEM - 249930-001

Motherboard (system board), 2-way - Does not include processors (Part Number 249930-001)

SPS-BD;BKPLN;PWR SPLY - 249924-001

Power Supply Backplane Board (Part Number 249924-001)

SPS-BD;PASS THROUGH - 249106-001

Pass-through board assembly - Interconnects the diagnostics (quick-find) display/media board to the system I/O board - Mounts vertically on the left side of the server (Part Number 249106-001)
