PC Boards

SPS-BD; VOLTAGE REGULATOR - 231783-001

Voltage Regulator Board (Part Number 231783-001)

SPS-BD;CONTROL PANEL - 231685-001

Control panel PC board (not the `Auto Power-On` version) (Part Number 231685-001)

SPS-BD;BACKPLANE;5026 - 231674-001

Backplane PC board assembly - Does not include metal cage (Part Number 231674-001)

SPS-BD;CNTRL;LIBR - 231671-001

Library controller PC board (Part Number 231671-001)

SPS-BD;PCI;HOT PLUG - 231127-001

PCI-X hot-plug board assembly - Includes the switches to turn off power to each of the four hot-plug PCI-X board slots - Mounts on the interior of the rear panel above the PCI-X slots (Part Number 231127-001)

SPS-BD;SYSTEM I/O - 231125-001

System I/O board assembly - Includes two PCI-X non-hot-plug slots, four PCI-X hot-plug slots, two USB connectors, and rear panel iLO, serial, video, mouse and keyboard connectors (Part Number 231125-001)

SPS-BD;SYSTEM I/O - 230998-001

Motherboard (system I/O board), 2-way - Does not include processors (Part Number 230998-001)

SPS-BD;PWR SPLY BKPLN - 230982-001

Power supply backplane board (Part Number 230982-001)

SPS-BD;CNTRLR - 229847-001

Controller PC board (Part Number 229847-001)

SPS-BD;SIDEPLANE;W/SUBPAN - 229336-001

Sideplane Board with Subpan (Part Number 229336-001)

SPS-BD;CNTRLR;EL - 229203-001

Modular Smart Array 1000 (MSA1000) controller - Wide Ultra3 RAID controller integrated into the MSA1000, with 128MB cache (Part Number 229203-001)

SPS-BD;CNTRL;SMRT ARRY;5i;MEZZ - 228510-001

Smart Array 5i Controller daughter board - Mounts on the system I/O board next to processor socket one (Part Number 228510-001)

SPS-CONVERTER;DC W/BKPLN - 228505-001

DC to DC converter module / power supply backplane assembly - Mounts in front of the power supply bays (Part Number 228505-001)

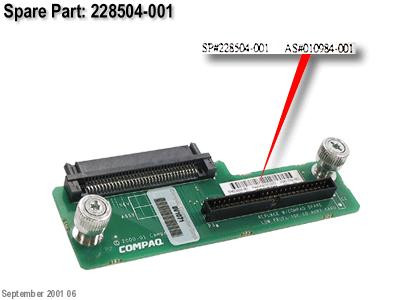

SPS-BD;CD MULTI-BAY ADAPTOR - 228504-001

Optical drive adapter board - Mounts at the rear of the optical drive bay - PC board with two connectors and two thumbscrews (Part Number 228504-001)

SPS-BD;BKPLN;SCSI LVD;6 BAY - 228502-001

Backplane board - For the front 6-bay SCSI hard drive cage (Part Number 228502-001)

SPS-BD;SYS I/O - 228494-001

System I/O board (motherboard) - Includes two processor sockets, rear panel VHDCI SCSI connector, serial port, video port, 2X NIC ports, 2X USB ports, mouse port, keyboard port and heatsink assembly (Part Number 228494-001)

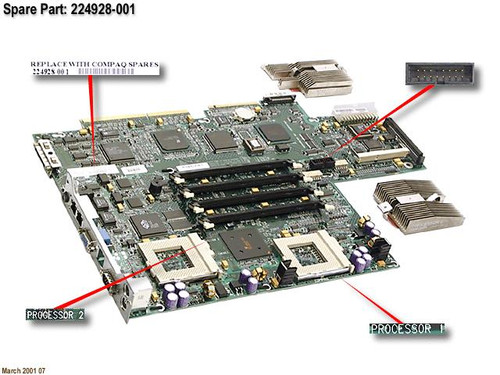

SPS-BD;SYSTEM I/O;1GHz - 224928-001

System I/O board assembly (motherboard) - Board includes two processor sockets, heat sinks, and thermal pads - For 1GHz processors - Does not include the processors (Part Number 224928-001)

SPS-BD;ENH;SYSTEM;W/TRAY CAGE - 223493-001

Motherboard (system board), with chassis/tray and processor cage - Does not include processors (Part Number 223493-001)

SPS-BD;CTRLR ARRAY W/16MB CACH - 223188-001

Fiber Channel Array Controller with 16MB cache (Part Number 223188-001)

SPS-BD;SYSTEM I/O - 216109-001

Motherboard (system I/O board), 2-way, with two heat sinks - Does not include processors (Part Number 216109-001)
